[ALL] WOWS Unpack Tool: unpack game client resources

[MatroseFuchs]

Greetings, all!

WoWs Unpack Tool (referred below as the program) is used not only to interact with console utility program wowsunpack.exe used to unpack in game resources (referred below as the utility) but also has a list of its own functionalities that can assist our respected modders in their work. WoWs Unpack Tool is compatible with Steam version of the game.

Program installation:

Spoiler

1. Download the program from link 1 or link 2
2. Program should be put directly into the root game folder. i.e. C:\Games\World_of_Warships.
3. Notice, that in the files address no other letter symbols that Latin alphabet is allowed.

Working with the program:

Spoiler

1. Launch the program. It’ll be automatically checked for available updates. If the utility is not located on the drive, or if there are updates available, the program will offer to install required updates.
   ATTENTION: If the program cannot download the unpacker (Error connecting to the update server), then it will offer to download it through the browser. You can also download the utility yourself at this link or this. In this case, the downloaded utility must be placed next to the program. Please note that the built-in auto-update function of the program may not work for everyone. The cause of this error has not yet been established.
2. Then you need to download the lists of packed content by the according button “Load content”.

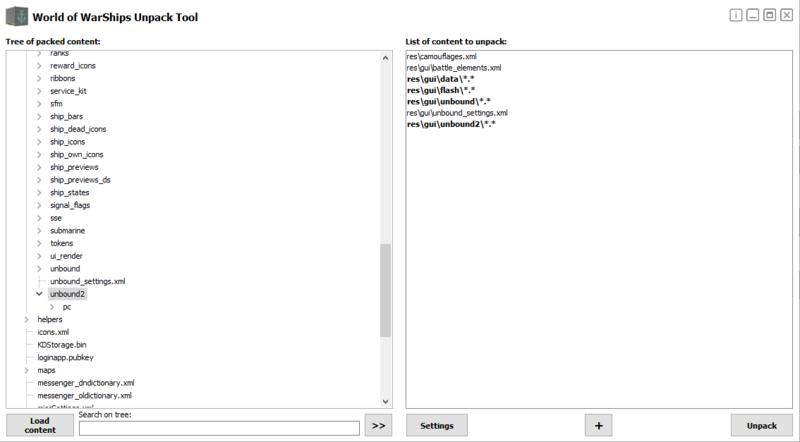

3. After downloading the content tree, you can select the necessary files and folders and add them to the list of tasks of the unpack utility. Adding can be done by pressing the ">>" key or dragging an item from the content tree to the unpacking list.

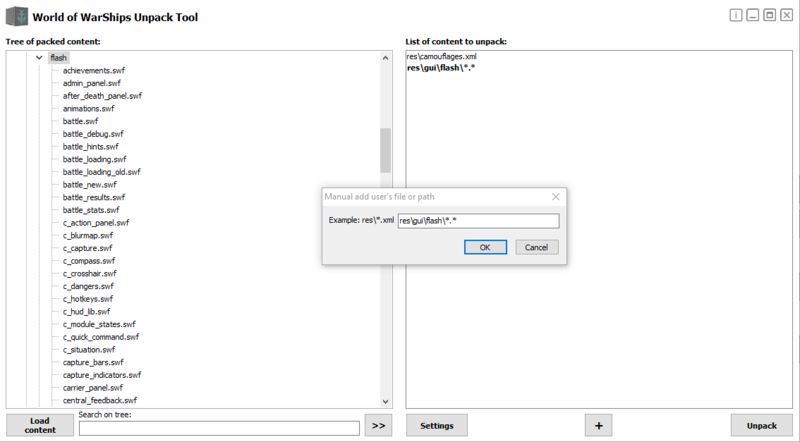

4. You can add additional file locations by «+» button or by pasting the file address by Ctrl+V.
5. After you’ve chosen the required file, press “Unpack” and wait for the unpacking process is finished.

Program settings and functions:

Spoiler

You can choose additional program functions via “Settings” button in the main program window. Below is the description of the option in the list:

1. Program language – currently available ones are English and Russian. If you need another language added, please DM me.
2. If chosen, at the program launch it’ll automatically download the list of packed content. It’s not recommended to choose this option at the same time as the option 3.1
3. If chosen, allows to save the last used list of content for unpacking. When launched next time, the program will use this path automatically.
   1. If chosen, automatically starts unpacking the files in the save location. It’s not recommended to choose this option at the same time as the option 2
4. If chosen, opens the files folder after the unpacking process is done
5. If chosen, the program will automatically check for updates after launch. This option can be chosen by “Information” window via according button. Checking for updates will also consider the game client version – to not update the update the app when your game client version is not the same as server unpacking tool (i.e. they are incompatible)
   1. If chosen the program will save the reserve copies of the updates apps.
6. If chosen, allows to set the custom paths to the files to unpack. By default, the program searches for the files in the root game folder.
7. This option is useful when within the folder content there are previously unpacked game client files – for example, if we want to know which files of 0.7.12 had been changed in version 0.8.0. Files that stayed the same will be skipped, while new or changed ones will be saved in the folder. The names of such new or changed files will be shown after the unpack – green for new, black for changed. By left click you can open the folder for these files.
   1. After unpacking new or changed file, the previous version of the file will be saved as back file (i.e. reserve copy) prior to the replace into the folder
   2. Set additional custom folder for comparing the unpacked files. The files in this folder are considered to be the newer ones. Option can be set by right-clicking on the “Unpack” button in main program window.

Info dialogue window:

Spoiler

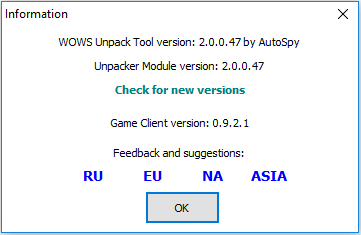

Window can be opened by clicking “I” in the main program menu (next to “minimize”) and shows the current version of the program and utility, based on the folder path to the unpacked content. This window also contains the links to checking the new version and to the forum.

Key binding:

Spoiler

In program standby mode:

• Ctrl + S – upload content;
• Ctrl + U – unpack the selected content;
• Ctrl + F – open the dialogue for search within the folder tree of selected content;
• Ctrl + С – copy the content of the unpack window;
• Ctrl + V – paste the selected content into the unpacking list window;
• Ctrl + X – close the program;

When unpacking or uploading content:

• Ctrl + С – cancel the process of unpacking or uploading.

Working with wowsunpack.exe utility via console command lines (just in case):

Spoiler

wowsunpack.exe [-h] [-l] [-x] [-o OUTPUT] [-I INCLUDE] [-X EXCLUDE]

INPUT

Optional arguments:

-h, --help                  help

-l, --list                     show as a list

-x, --extract             unpack using idx at bin\2666186\idx (required parameter, bin and idx are the current build number)

-p ..\..\..\res_packages

                                path to packed content: .. \ .. \ .. \ res_packages (constant required parameter)

-o OUTPUT, --output OUTPUT

                                 Folder where to unpack.

-I INCLUDE, --include INCLUDE

                                 Files that are added to the process

-X EXCLUDE, --exclude EXCLUDE

                                Files that are excluded from the process

Examples:

Show the list of _packages files:

   wowsunpack.exe -l -x bin\2666186\idx -p ..\..\..\res_packages

Save the list of res_packages as a list txt:

   wowsunpack.exe -l -x bin\2666186\idx -p ..\..\..\res_packages > list.txt

Unpack all the content into the default folder:

   wowsunpack.exe -x bin\2666186\idx -p ..\..\..\res_packages

Unpack all the content into the “my_unpack folder":

   wowsunpack.exe -x bin\2666186\idx -p ..\..\..\res_packages -o my_unpack

Unpack *.swf files only:

   wowsunpack.exe -x bin\2666186\idx -p ..\..\..\res_packages -I *.swf

Unpack *.swf files only except for main_scene.swf:

   wowsunpack.exe -x bin\2666186\idx -p ..\..\..\res_packages -I *.swf -X *main_scene*

---



Referrals:

WOWS Unpack Tool program - AutoSpy
wowsunpack.exe utility - Wargaming.net

Submit your comments and suggestions in this thread – will try to answer all the questions regarding the program.

Good luck with modding!

[Bakakaze]

On 2/19/2019 at 9:50 AM, MatroseFuchs said:

Greetings, all!

WoWs Upack Tool (referred below as the program) is used not only to interact with console utility program wowsunpack.exe used to unpack in game resources (referred below as the utility) but also has a list of its own functionalities that can assist our respected modders in their work. WoWs Upack Tool is compatible with Steam version of the game.

Program installation:

  Hide contents

1. Download the program.
2. Program should be put directly into the root game folder. i.e. C:\Games\World_of_Warships.
3. Notice, that in the files address no other letter symbols that Latin alphabet is allowed.

Working with the program:

  Hide contents

1. Launch the program. It’ll be automatically checked for available updates. If the utility is not located on the drive, or if there are updates available, the program will offer to install required updates.
2. Then you need to download the lists of packed content by the according button “Download content”.
3. After downloading the content tree, you can select the necessary files and folders and add them to the list of tasks of the unpack utility. Adding can be done by pressing the ">>" key or dragging an item from the content tree to the unpacking list.
4. You can add additional file locations by «+» button or by pasting the file address by Ctrl+V.
5. After you’ve chosen the required file, press “Unpack” and wait for the unpacking process is finished.

Program settings and functions:

  Hide contents

You can choose additional program functions via “Settings” button in the main program window. Below is the description of the option in the list:

1. Program language – currently available ones are English and Russian. If you need another language added, please DM me.
2. If chosen, at the program launch it’ll automatically download the list of packed content. It’s not recommended to choose this option at the same time as the option 3.1
3. If chosen, allows to save the last used list of content for unpacking. When launched next time, the program will use this path automatically.
   1. If chosen, automatically starts unpacking the files in the save location. It’s not recommended to choose this option at the same time as the option 2
4. If chosen, opens the files folder after the unpacking process is done
5. If chosen, the program will automatically check for updates after launch. This option can be chosen by “Information” window via according button. Checking for updates will also consider the game client version – to not update the update the app when your game client version is not the same as server unpacking tool (i.e. they are incompatible)
   1. If chosen the program will save the reserve copies of the updates apps.
6. If chosen, allows to set the custom paths to the files to unpack. By default, the program searches for the files in the root game folder.
7. This option is useful when within the folder content there are previously unpacked game client files – for example, if we want to know which files of 0.7.12 had been changed in version 0.8.0. Files that stayed the same will be skipped, while new or changed ones will be saved in the folder. The names of such new or changed files will be shown after the unpack – green for new, black for changed. By left click you can open the folder for these files.
   1. After unpacking new or changed file, the previous version of the file will be saved as back file (i.e. reserve copy) prior to the replace into the folder
   2. Set additional custom folder for comparing the unpacked files. The files in this folder are considered to be the newer ones. Option can be set by right-clicking on the “Unpack” button in main program window.

Info dialogue window:

  Hide contents

Window can be opened by clicking “I” in the main program menu (next to “minimize”) and shows the current version of the program and utility, based on the folder path to the unpacked content. Currently the version of both program and utility are 0.0.0.0. This window also contains the links to checking the new version and to the forum.

Key binding:

  Reveal hidden contents

In program standby mode:

• Ctrl + S – upload content;
• Ctrl + U – unpack the selected content;
• Ctrl + F – open the dialogue for search within the folder tree of selected content;
• Ctrl + С – copy the content of the unpack window;
• Ctrl + V – paste the selected content into the unpacking list window;
• Ctrl + X – close the program;

When unpacking or uploading content:

• Ctrl + С – cancel the process of unpacking or uploading.

Working with wowsunpack.exe utility via console command lines (just in case):

  Reveal hidden contents

wowsunpack.exe [-h] [-l] [-x] [-o OUTPUT] [-I INCLUDE] [-X EXCLUDE]

INPUT

Optional arguments:

-h, --help                  help

-l, --list                     show as a list

-x, --extract unpack

-o OUTPUT, --output OUTPUT

                                 Folder where to unpack.

-I INCLUDE, --include INCLUDE

                                 Files that are added to the process

-X EXCLUDE, --exclude EXCLUDE

                                Files that are excluded from the process

Examples:

Show the list of _packages files:

    wowsunpack.exe -l res_packages

Save the list of res_packages as a list txt:

    wowsunpack.exe -l res_packages > list.txt

Unpack all the content into the default folder:

    wowsunpack.exe -x res_packages

Unpack all the content into the “my_unpack folder":

    wowsunpack.exe -x res_packages -o my_unpack

Unpack *.swf files only:

    wowsunpack.exe -x -I *.swf res_packages

Unpack *.swf files only except for main_scene.swf:

    wowsunpack.exe -x -I *.swf -X *main_scene* res_packages

---



Referrals:

WOWS Unpack Tool program - AutoSpy
wowsunpack.exe utility - Wargaming.net

Submit your comments and suggestions in this thread – will try to answer all the questions regarding the program.

Good luck with modding!

Hello. I'm trying to use this tool but I'm hitting a brick wall right now.



I'm trying to extract the sound files, but whatever I try, it seems to start extracting the first file, but the program then seems to freeze. It creates just one file of 0kb and the CPU will go 100%. It seems to stay there indefinitely until I force shutdown the program using CTRL+ALT+DEL.



I've tried in the past to also extract these sounds using what I reckon was an older version of this tool.



I've tried extracting from several different installed clients, including the TST one that was specifically made available to test the carrier rework.

I really wanted to get this program to work.



But I'm hitting this brick wall here.



Since I get the same results no matter what I do, you have any idea what is going wrong here? It will not succesfully extract even a single file and I have no idea why.

[MatroseFuchs]

11 hours ago, Bakakaze said:

Since I get the same results no matter what I do, you have any idea what is going wrong here? It will not succesfully extract even a single file and I have no idea why.

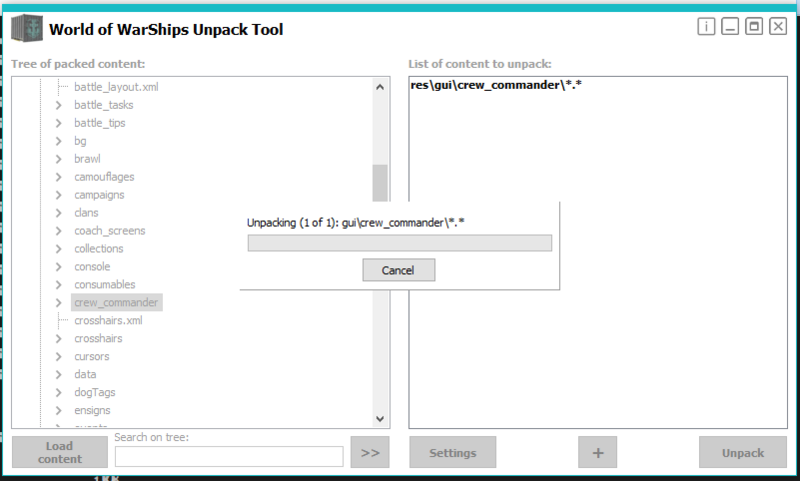

Please make screenshot with your problem. What do you try to unpack? What is an error?

[MatroseFuchs]

Update the program.

Changes:

• Fixed connection error to the update server.
• Added the ability to open the download page of program components in a browser.

[M4A1_SOPMOD_II]

The program refuses to run isn't there another program to use along with this as i recall?

[M4A1_SOPMOD_II]

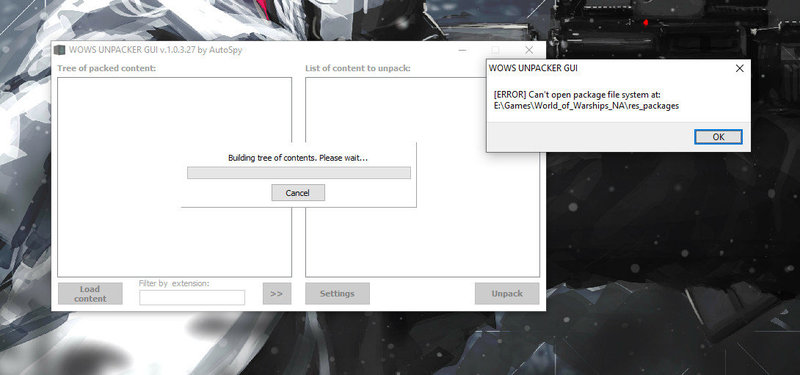

for some reason it wont open for me it keeps giving me this error message now

[MatroseFuchs]

10 hours ago, M4A1_SOPMOD_II said:

for some reason it wont open for me it keeps giving me this error message now

Hi, did you download the last version and install the program according to the instructions?

10 hours ago, M4A1_SOPMOD_II said:



It looks like you try to run one of the previous versions without "wowsunpack.exe" or the program is not in the game folder.

[StarlinDieCyka]

If I want to replace the file in the pack, what should I do?

[MatroseFuchs]

11 hours ago, StarlinDieCyka said:

If I want to replace the file in the pack, what should I do?

The files in the pack can't be replaced.

[JobyNA]

WoWs Unpack Tool not working for 0.9.6 PT Files?

[MatroseFuchs]

The program has been updated to version 2.0.1.57.

List of changes:

1. Compatibility with the game client version 0.9.6.
2. The option "Save only new and changed files" is now enabled by default.
3. The option "Open content folder after unpacking" is now enabled by default.
4. Some minor bugs fixed.

[MatroseFuchs]

The program has been updated to version 2.0.1.60.

Updated:

• The function of detecting the latest directory of the game client.

Changes:

• The app now uses the path C:\Users\LocalUser\AppData\Local\Temp for its own temp files.
• The paths fields in the Settings menu can only be changed using the Browse button.
• The backup function for updated apps files is now independent.
• Some other code changes.

[Xwing_Red1]

On 11/9/2020 at 4:15 AM, MatroseFuchs said:

The program has been updated to version 2.0.1.60.

Updated:

• The function of detecting the latest directory of the game client.

Changes:

• The app now uses the path C:\Users\LocalUser\AppData\Local\Temp for its own temp files.
• The paths fields in the Settings menu can only be changed using the Browse button.
• The backup function for updated apps files is now independent.
• Some other code changes.

Hi .

Some of the "black" Ships are not showing on the list (for example,  Sharnhorst Black; Zeppelin Black)

[Princess_Daystar]

On 2/24/2019 at 1:43 PM, Bakakaze said:

Hello. I'm trying to use this tool but I'm hitting a brick wall right now.



I'm trying to extract the sound files, but whatever I try, it seems to start extracting the first file, but the program then seems to freeze. It creates just one file of 0kb and the CPU will go 100%. It seems to stay there indefinitely until I force shutdown the program using CTRL+ALT+DEL.



I've tried in the past to also extract these sounds using what I reckon was an older version of this tool.



I've tried extracting from several different installed clients, including the TST one that was specifically made available to test the carrier rework.

I really wanted to get this program to work.



But I'm hitting this brick wall here.



Since I get the same results no matter what I do, you have any idea what is going wrong here? It will not succesfully extract even a single file and I have no idea why.

Hey so im running into this exact same issue.

[Bakakaze]

On 11/14/2021 at 11:25 PM, Princess_Daystar said:

Hey so im running into this exact same issue.

I never found a solution to this problem.



And tbh with the way wows has been run the last few years I'm not really motivated anymore to work in such a thing either.

[Princess_Daystar]

23 hours ago, Bakakaze said:

I never found a solution to this problem.



And tbh with the way wows has been run the last few years I'm not really motivated anymore to work in such a thing either.

Saddly i was hoping to get a response from the person in charge of this now. :(

@Boggzy
 do we have any idea whos in charge of this now? Trying to take over one of the mods from Major Renegade :(

[MatroseFuchs]

On 11/15/2021 at 1:25 AM, Princess_Daystar said:

Hey so im running into this exact same issue.

This problem can occur when trying to unzip files while the game client is running. Make sure the game client is closed before starting the unpacker.

[Princess_Daystar]

24 minutes ago, MatroseFuchs said:

This problem can occur when trying to unzip files while the game client is running. Make sure the game client is closed before starting the unpacker.

Worked! Thank you kindly!

[dbw86]

What does this file actually do in the game and do we really. need it?    I'm very computer illiterate as you can probably tell by my question.

[Jr_Token]

Above my pay grade :)

[MatroseFuchs]

12 hours ago, dbw86 said:

What does this file actually do in the game and do we really. need it?    I'm very computer illiterate as you can probably tell by my question.

Unfortunately I did not understand your question. Please describe in detail what you want.

[Princess_Daystar]

16 hours ago, dbw86 said:

What does this file actually do in the game and do we really. need it?    I'm very computer illiterate as you can probably tell by my question.

One can gain access to the contents of the games files, and its fast.

For example:

Im taking over Major Renegades crew icon mod(yes the mlp one) and i needed access to all the new commander icons since they have been rezised and theres a bunch thst have been added his mod didnt cover. Using this i got those files.

I didnt bother to see if you can do it without this tool.

world of tanks for example you could access the files easily, no tools required(years ago) not so sure with this game.

[dbw86]

Thank you!   As I understand your answer it is a tool that aides those working on mods more than the normal player.

[Admiral_Horton_KY]

Is there a new update as it seems they change the format for the ships???
